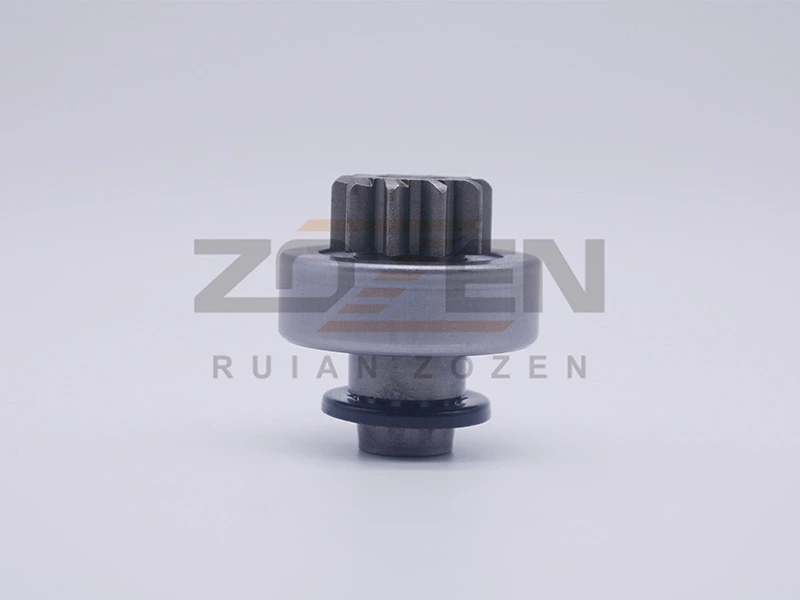

| DIMENSION | ||
| T | 10 | Number of pinion Teeth |
| D | 53 | Drive O.D.(mm) |
| G | 32.6 | Pinion O.D(mm) |
| ID | 12 | Pinion I.D.(mm) |
| L | 55 | Lenght(mm) |
| SPL | 9 | Number of Splines |
| ROTATION | CW | |
| REF NO | APPLICATION |
| 3616042300 0809042 188993 594410 231932 54-9456 |
Hyundai:H-1,H100,HR,Porter Kia:Bongo,K2500,Pregio Mitsubishi:Katana,L200,Pajero Nissan:Interstar,Primastar Opel:Movano,Vivaro Renault:Avantime,Espace,Laguna |
